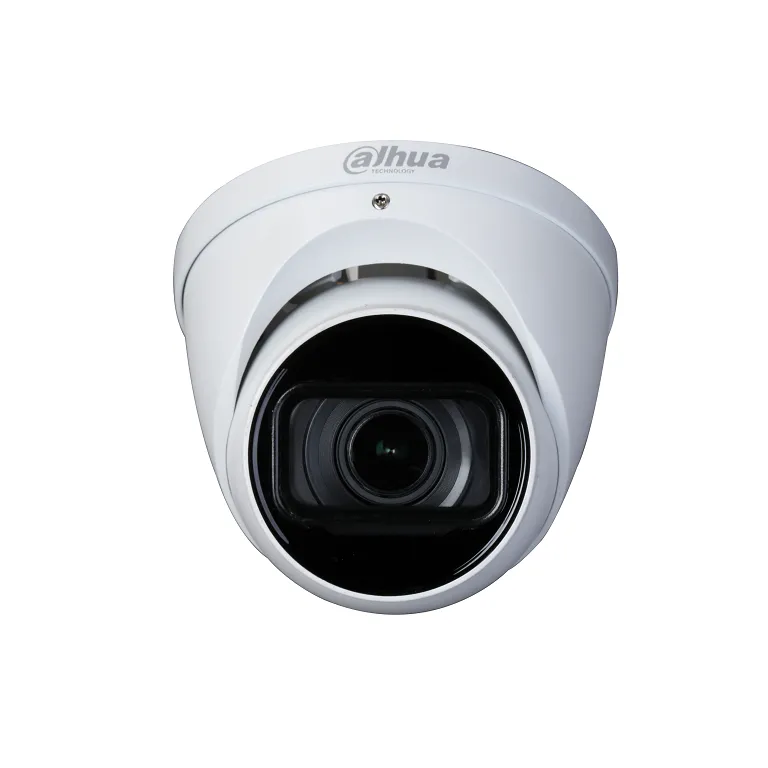

Dahua HDCVI 5MP IP67 IR 2.7-13.5mm Turret Camera Dual Voltage

Dahua HDCVI 5MP IP67 IR 2.7-13.5mm Turret Camera Dual Voltage

$237.00
  IN STOCK
  IN STOCK
  IN STOCK
  PRODUCT ENQUIRY
  • Starlight, 120dB true WDR, 3DNR
  • Max. 25fps@5MP(16:9 video output)
  • CVI/CVBS/AHD/TVI switchable
  • Audio in interface, built-in mic
  • 2.7 mm–13.5 mm motorized lens
  • Max. IR length 60m, Smart IR
  • IP67, 24V AC/12V DC

Brand: Dahua Code: HACHDW2501TZA
APN: 6939554952685   |    Supplier Code: 1.0.01.12.16503-0002
Supplier Description: DH-HAC-HDW2501TP-Z-A-DP-27135

Recommended Accessories

Camera
Image Sensor 1/2.7 inch CMOS
Effective Pixels 2880 (H) × 1620 (V),5MP
Scanning System Progressive
Electronic Shutter Speed

PAL: 1/3 s–1/100,000 s

NTSC: 1/4 s–1/100,000 s

Minimum Illumination 0.001 Lux/F1.6, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 60m (197feet)
IR On/Off Control Auto / Manual
IR LEDs 2
Lens
Lens Type Motorized vari-focal
Mount Type φ14
Focal Length 2.7-13.5mm
Max Aperture F1.6
Angle of View

Horizontal: 31.4°–113°

Vertical: 17.6°–58°

Diagonal: 36°–138°

Focus Control Auto / Manual
Iris Type Fixed iris
Close Focus Distance .8 m (2.6 ft)
Pan / Tilt / Rotation
Pan/Tilt/Rotation Pan: 0° ~ 360°
Tilt: 0° ~ 78°
Rotation: 0° ~ 360°
Video
Resolution

5M (2880 × 1620); 4M (2560 × 1440);

1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Frame Rate

CVI:

PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps

NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps

AHD:

PAL: 4M@25 fps

NTSC: 4M@30 fps

TVI:

PAL: 4M@25 fps

NTSC: 4M@30 fps

CVBS:

PAL: 960H

NTSC: 960H

Video Output 1-channel BNC high definition video output / CVBS video output (DIP switch)
Day/Night Auto switch by ICR
BLC Mode BLC/HLC/WDR/HLC-Pro
WDR 120dB
Gain Control Auto; manual
Noise Reduction 3D NR
White Balance Auto / Manual
Smart IR Auto / Manual
Digital Zoom 4x
Defog Electronic defog
Mirror Off/On
Privacy Masking Off/On (8 areas, rectangle)
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
DORI Definition / Distance (Wide~Tele)
Lens Lens Observe Recognize Identify
2.7mm 64.0 m (210.0 ft) 25.6 m(84.0 ft) 12.8 m(42.0 ft) 6.4 m(21.0 ft)
13.5mm 210.0 m(689.0 ft) 84.0 m(275.6 ft) 42.0 m(137.8 ft) 21.0 m(68.9 ft)
Certifications
Certifications

CE (EN55032:2015, EN61000-3-2:2014,

EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014,

EN62368-1:2014+A11:2017)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface
Audio Interface 1ch in & Built-in Mic
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)
Electrical
Power Supply 24V AC±25%/12V DC±10%
Power Consumption Max. 9.5W (12V DC, IR on)
Environmental
Operating Conditions –30°C to +60°C (–22°F to +140°F); < 95%
(non-condensation)
Storage Conditions –30°C to +60°C (–22°F to +140°F); < 95% (non-condensation)
Ingress Protection & Vandal Resistance IP67
Construction
Casing Metal throughout the whole casing
Dimensions Φ122 mm × 104.8 mm (Φ4.8" × 4.13")
Net Weight 0.63 kg (1.40 lb)
Gross Weight 0.79 kg (1.70 lb)
