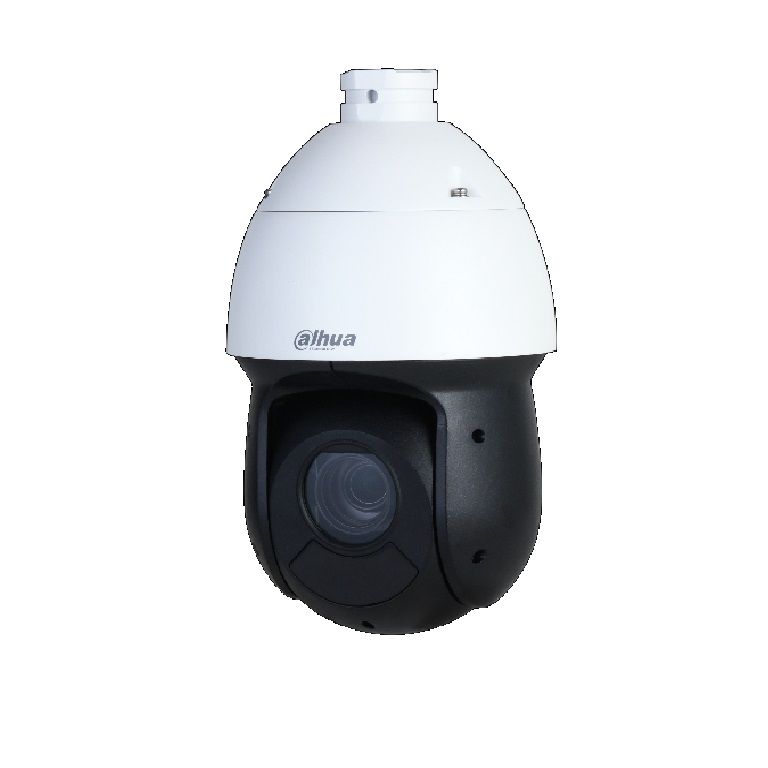

Dahua IP 2MP 25x PTZ Camera Wizsense **
- 1/2.8" 2Megapixel STARVIS™ CMOS
- 25× optical zoom
- Starlight technology
- Max. 25/30 fps@1080p
- IR distance up to 100 m.
- H.265 encoding.
- Perimeter protection
- Face Detection. Up to 8 faces captured at the same time.
| Camera | |
| Sensor | 2mp 1/2.8" CMOS |
| Lens | 4.8mm-120mm |
| DORI Distance | Detect(m): 1,613m Observe(m): 646m Recognize(m): 323m Identify(m): 161m |
| Max. Resolution | 1920 (H) × 1080 (V) |
|
ROM RAM |
128MB 256MB |
| Electronic Shutter Speed | 1/1s - 1/30,000 s |
| Scanning System | Progressive |
| Minimum Illumination | Color: 0.005 [email protected] B/W: 0.0005 [email protected] 0 lux (IR light on) |
| Iris | Auto |
| Close Focus Distance | 0.1 m–1.5 m (0.33 ft–4.92 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification |
| Face Detection | Supports face detection, capturing pictures, and face enhancement |
| SMD | Yes |
| Video | |
| Video Compression | Smart H.265+;H.265;Smart H.264+;H.264;H.264B;MJPEG(Sub Stream) |
| Streaming Capability | 3 streams |
| Resolution | 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| HLC | Yes |
| BLC | Yes |
| White Balance | Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
|
Digital Zoom Image Rotation Privacy Masking |
16x 180° Up to 24 areas can be set, with up to 8 areas in the same view |
| Audio | |
| Audio Compression | G.711a; G.711Mu; G.722.1; G.726; MPEG2-Layer2; G.729 |
| Network | |
|
Network Port Protocols |
RJ-45 (10/100 Base-T) HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;SSL;Qos;FTP;UPnP;ICMP;SNMP;SNMPv1/v2c/v3(MIB-2);IGMP;ARP;RTCP;RTP;PPPoE;IP Filter;RTMP;Bonjour;TCP;SMB;NFS |
| Storage | FTP; Micro SD card (512 GB); NAS |
| Port | |
| Audio Input | 1 channel (LINE IN, bare wire) |
|
Audio Output Alarm Linkage
Alarm Event |
1 channel (LINE OUT,bare wire) Capture; preset; tour; pattern; recording; alarm digital input; audio; send email Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection |
| General | |
|
Power
Power Consumption |
12 VDC/3 A (± 10%) PoE (802.3at) PoE (802.3at) Basic: 12 W |
| Dimensions (Ø x H) | 270.4 mm × Φ160.0 mm (10.65" × Φ6.30") |
| Weight | 2.4kg (5.29 ib) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Protection | IP66, TVS 6000 V lightning proof; surge protection; voltage transient protection |
| Installation Guides | |
|---|---|
| Dahua IP 2MP 25x PTZ Camera Wizsense ** - Installation Guide | Product Manuals |
| Dahua IP 2MP 25x PTZ Camera Wizsense ** - Product Manual |
Brand: Dahua |
Code: SD49225DB-HNY
APN: 6923172541963 |
Supplier Code: 1.0.01.07.14462-0025
Supplier Description: DH-SD49225DB-HNY
Brand: Dahua |
Code: SD49225DB-HNY
APN: 6923172541963 |
Supplier Code: 1.0.01.07.14462-0025
Supplier Description: DH-SD49225DB-HNY
