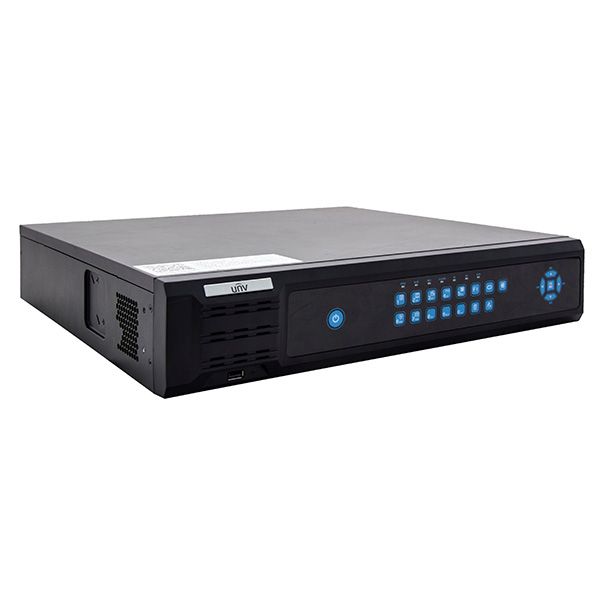

UNV NVR 32 Channel

ONVIF

Third-party IP cameras supported with ONVIF conformance

Cloud Upgrade

Jusct click "upgrade" in the NVR menu, it will automatically detect the latest firmware and upgrade.

*Internet connection required

IPC Upgrade on NVR

VCA

EZCloud

The EZCloud video service offers a superb mobile solution for managing and remote viewing IP cameras

Higher Security

Uniview NVR adopt different password security level between LAN and WAN

Smart Search

Smart search allows users to search events efficiently by specifying parameters.

Corridor Mode

Uniview NVRs can playback and easily support IP cameras that works in corridor mode.

ANR

Uniview IP cameras record footage into SD cards when connection between NVR and camera is interrupted and will upload the footage stored in SD card when the connection back up.

*Only applicable to IP cameras with SD Card or built-in eMMC

Model

NVR208-32

Video/Audio Input

IP Video Input

32-ch

Two-way Audio Input

1-ch, RCA

Network

Incoming Bandwidth

200Mbps

Outgoing Bandwidth

96Mbps

Remote Users

128

Protocols

P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

HDMI/VGA Output

HDMI/VGA:

1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz

Recording Resolution

4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Audio Output

1-ch, RCA

Synchronous Playback

16-ch

Corridor Mode Screen

3/4/5/7/9/10/12/16/32

Decoding

Decoding format

H.264

Live view/Playback

4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Capability

4 x 4MP@20, 6 x 1080p@25, 16 x 720p@25, 32 x D1

Hard Disk

SATA

8 SATA interfaces

Capacity

up to 6TB for each disk

Smart

VCA Detection

Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking

External Interface

Network Interface

2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces

Serial Interface

1 x RS232, 1 x RS485

USB Interface

Front panel: 1 x USB2.0

Rear panel: 1 x USB2.0, 1 x USB3.0

Alarm In

8-ch

Alarm Out

2-ch

General

Power Supply

100 ~ 240 VAC

Power Consumption: ≤ 15 W( without HDD )

Working Environment

-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)

Dimensions(W×D×H)

 442 mm × 421 mm×86mm ( 17.4” × 16.6” × 3.4”  )

Weight ( without HDD )

≤ 5.16Kg ( 11.38 lb )
