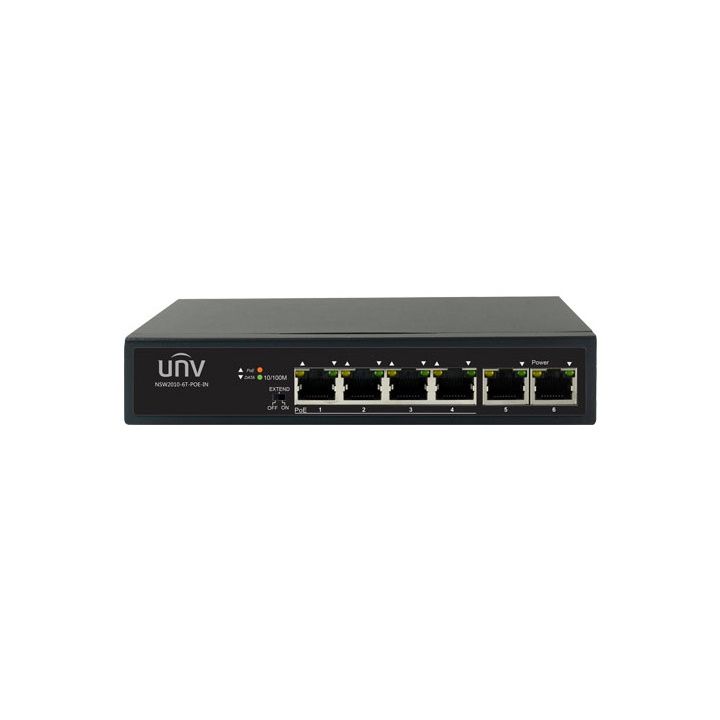

UNV Network Switch 4 PoE & 2 Uplink

UNV Network Switch 4 PoE & 2 Uplink

  PRODUCT ENQUIRY
Brand: Uniview Code: NSW2010-6TPOE
APN: 9319499092146   |    Supplier Code: NSW2010-6T-POE-IN
Supplier Description: 4-port 2 Uplink Port PoE Switc
  • 6x 100Mbps (4x PoE) Ports
  • 802.3at/af PoE
  • 65W Max Capacity
Ports 6×100Mbps network ports (RJ45), including 4 PoE ports
Standards IEEE802.3,IEEE802.3u,IEEE802.3az,IEEE802.3x,IEEE802.3af,IEEE802.3at
Switching capacity 1.2Gbps
Forwarding performance 0.90Mpps
Packet Buffer 768Kbit
MAC 2K
Dimensions (W×D×H) 160mm x 93mm x 32mm(6.3"×3.7"×1.3")
Weight <0.6kg
Power supply AC: 100-240V, 50/60Hz
PoE 802.3at/af
Max. PoE Power Max capacity: 65W
Max capacity for single port: 30W
Cooling Fans 0
Mean Time Between Failure(MTBF) >50000 hours
Operating temperature Operating temperature
Operating humidity 10%~90% (noncondensing)
Storage humidity 5%~90% (noncondensing)
Indicator PWR: Steady on: AC input is normal
Off: No AC input

PoE:
Off: No PoE power supply
Steady on: PoE power supply is normal
Flashing: PoE power supply is abnormal

LINK/ACT:
Off: No link
Steady: Linked at 10/100Mbps
Flashing: Transmitting data

Speed:
Off: Linked at 10/100Mbps
On: Linked at 1000Mbps
Working Mode Default(Normal mode) : All ports can communicate with each other.
EXTEND(Surveillance mode): Transmission distance up to 250 meters.
DATASHEETS
UNV Network Switch 4 PoE & 2 Uplink - Datasheet
This product has yet to be reviewed

To be the first to review this product simply fill out the form to the left and let us know how you feel about this product!


To estimate the freight on this item simply enter the destination postcode and the desired quantity and click the "estimate" button.

OVERVIEW

  • 6x 100Mbps (4x PoE) Ports
  • 802.3at/af PoE
  • 65W Max Capacity

SPECIFICATIONS

Ports 6×100Mbps network ports (RJ45), including 4 PoE ports
Standards IEEE802.3,IEEE802.3u,IEEE802.3az,IEEE802.3x,IEEE802.3af,IEEE802.3at
Switching capacity 1.2Gbps
Forwarding performance 0.90Mpps
Packet Buffer 768Kbit
MAC 2K
Dimensions (W×D×H) 160mm x 93mm x 32mm(6.3"×3.7"×1.3")
Weight <0.6kg
Power supply AC: 100-240V, 50/60Hz
PoE 802.3at/af
Max. PoE Power Max capacity: 65W
Max capacity for single port: 30W
Cooling Fans 0
Mean Time Between Failure(MTBF) >50000 hours
Operating temperature Operating temperature
Operating humidity 10%~90% (noncondensing)
Storage humidity 5%~90% (noncondensing)
Indicator PWR: Steady on: AC input is normal
Off: No AC input

PoE:
Off: No PoE power supply
Steady on: PoE power supply is normal
Flashing: PoE power supply is abnormal

LINK/ACT:
Off: No link
Steady: Linked at 10/100Mbps
Flashing: Transmitting data

Speed:
Off: Linked at 10/100Mbps
On: Linked at 1000Mbps
Working Mode Default(Normal mode) : All ports can communicate with each other.
EXTEND(Surveillance mode): Transmission distance up to 250 meters.
