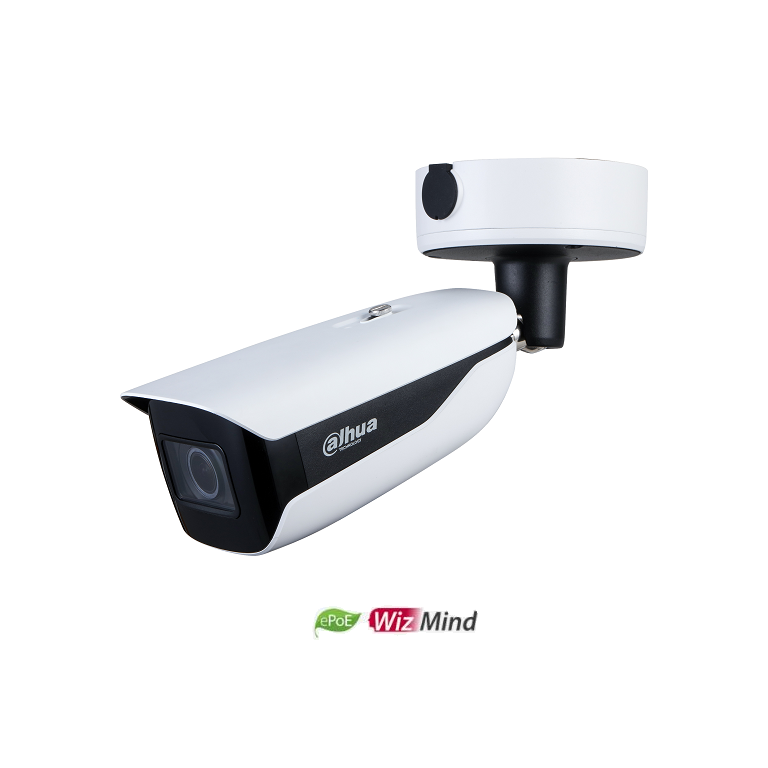

Dahua IP 8MP 2.7-12mm Dual Voltage Wizmind Bullet Camera **

Loading
  • Dahua IP 8MP 2.7-12mm Dual Voltage Wizmind Bullet Camera **

  • 8MP, 1/1.8" CMOS image sensor, low illuminance, high image definition
  • Max outputs 8MP (3840×2160) @25fps/30fps
  • H.264&H.265 coding, high compression ration
  • Wide dynamic, day/night, 3D NR, AWB, HLC, BLC
  • With deep learning algorithm, it supports people counting, face detection, perimeter protection etc
  • Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; BNC; supports max. 256 G SD card
  • 24V AC/12V DC/PoE power supply (the power ports are different depending on the power supply)
  • Three streams for two-channel HD video
  • IP67, IK10 protection grade
  • 12V DC power output, max. current 165mA , easy for installation

Case Studies
IPCHFW5842HPZHE - Quick Guide
Datasheets
Dahua IP 8MP 2.7-12mm Dual Voltage Wizmind Bullet Camera ** - Datasheet
Product Manuals
Dahua IP 8MP 2.7-12mm Dual Voltage Wizmind Bullet Camera ** - Product Manual

Brand: Dahua | Code: IPCHFW5842HPZHE
APN: 6939554980190 | Supplier Code: 1.0.01.04.32038

Brand: Dahua | Code: IPCHFW5842HPZHE
APN: 6939554980190 | Supplier Code: 1.0.01.04.32038

At a glance

  • 8MP, 1/1.8" CMOS image sensor, low illuminance, high image definition
  • Max outputs 8MP (3840×2160) @25fps/30fps
  • H.264&H.265 coding, high compression ration
  • Wide dynamic, day/night, 3D NR, AWB, HLC, BLC
  • With deep learning algorithm, it supports people counting, face detection, perimeter protection etc
  • Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; BNC; supports max. 256 G SD card
  • 24V AC/12V DC/PoE power supply (the power ports are different depending on the power supply)
  • Three streams for two-channel HD video
  • IP67, IK10 protection grade
  • 12V DC power output, max. current 165mA , easy for installation
