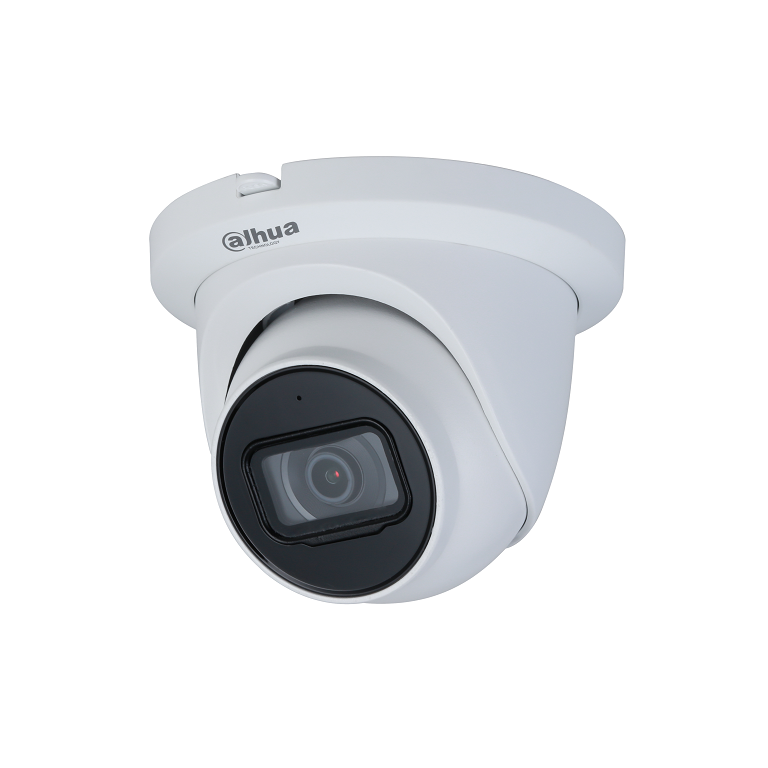

| Camera |
| Image Sensor |
1/3” 4Megapixel progressive CMOS |
| Effective Pixels |
2688 (H) × 1520 (V) |
| ROM |
128 MB |
| RAM |
128 MB |
| Scanning System |
Progressive |
| Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
| Minimum Illumination |
0.008 [email protected] |
| S/N Ratio |
> 56 dB |
| Illumination Distance |
30 m (98.4 ft) |
| Illuminator On/Off Control |
Auto/ Manual |
| Illuminator Number |
2 (IR LED) |
| Pan/Tilt/Rotation Range |
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360° |
| Lens |
| Lens Type |
Fixed-focal |
| Mount Type |
M12 |
| Focal Length |
2.8 mm; 3.6 mm |
| Max. Aperture |
F1.6 |
| Field of View |
2.8 mm: Horizontal 102° × Vertical 55° × Diagonal 121°
3.6 mm: Horizontal 84° × Vertical 45° × Diagonal 100° |
| Iris Type |
Fixed |
| Close Focus Distance |
2.8 mm: 0.9 m (2.95 ft)
3.6 mm: 1.6 m (3.61 ft) |
| DORI Distance |
| Lens |
Detect |
Observe |
Recognize |
Identify |
| 2.8 mm |
56 m
(183.73 ft)
|
22.4 m
(73.49 ft)
|
11.2 m
(36.75 ft)
|
5.6 m
(18.37 ft)
|
| 3.6 mm |
80 m
(262.47 ft)
|
32.0 m
(104.99ft)
|
16.0 m
(52.49ft)
|
8.0 m
(26.25 ft)
|
|
| Smart Event |
| IVS(Perimeter Protection) |
Tripwire; intrusion |
| Video |
| Compression |
H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec |
Smart H.265+/Smart H.264+ |
| Streaming Capability |
2 Streams |
| Resolution |
2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 ×480); CIF (352 × 288/352 × 240) |
| Frame Rate |
Main stream: 2688 × 1520 (1 fps-20 fps),2560 × 1440 (1 fps-25/30 fps)
Sub stream: 704 × 576 @1-25 fps/704 × 480 @ 1-30fps |
| Bit Rate Control |
CBR/VBR |
| Video Bit Rate |
H.264: 32 kbps–6144 kbps
H.265: 12 kbps–8144 kbps |
| Day/Night |
Auto(ICR)/Color/B/W |
| BLC Mode |
BLC / HLC / WDR(120dB) |
| White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control |
Auto/Manual |
| Noise Reduction |
3D DNR |
| Motion Detetion |
OFF/ON (4 areas, rectangular) |
| Region of Interest |
Off / On (4 areas) |
| Smart Illumination |
Yes |
| Image Rotation |
0°/90°/180°/270° (Supports 90°/270° with 3840 × 2160 resolution and lower.) |
| Mirror |
Yes |
| Privacy Masking |
Off / On (4 Areas) |
| Audio |
| Built-in MIC |
Yes |
| Audio Compression |
G.711A; G.711Mu; G.726 |
| Alarm |
| Alarm Event |
No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; safety exception |
| Network |
| |
| Ethernet |
RJ-45 (10/100Base-T) |
| SDK and API |
Yes |
| Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour |
| Cyber Security |
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
| User/Host |
20 |
| Storage |
FTP; SFTP; Micro SD card (support max. 256 G);NAS |
| Browser |
IE
Chrome
Firefox |
| Management Software |
Smart PSS; DSS; DMSS |
| Smart Phone |
IOS, Android |
| Certifications |
| Certifications |
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
| Environment |
| Operating Conditions |
–40°C to +60°C (–40°F to +140°F)/Less than 95% RH |
| Strorage Conditions |
–40°C to +60°C (–40°F to +140°F) |
| Protection Grade |
IP67 |
| Structure |
| Casing |
Metal |
| Dimensions |
99.1mm × Φ121.9 mm (3.9" × Φ4.8") |
| Net Weight |
0.48 kg (1.1 lb) |
| Gross Weight |
0.65 kg (1.4 lb) |
| Electrical |
| Power Supply |
12V DC/PoE (802.3af) |
| Power Consumption |
< 6.6W |
