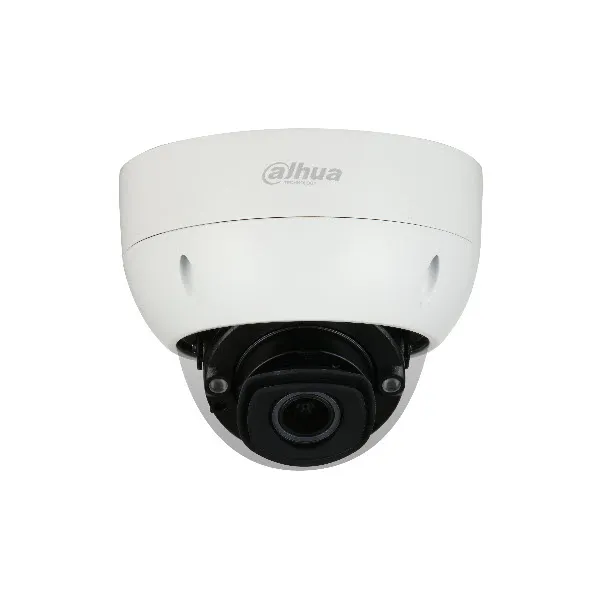

Dahua IP 8MP 2.7-12mm IR40m ePoE 12/24V IK10 WizMind Dome

Loading
  • Dahua IP 8MP 2.7-12mm IR40m ePoE 12/24V IK10 WizMind Dome

  • 8MP, 1/1.8" CMOS image sensor
  • Wide dynamic, day/night, 3D NR, AWB, HLC, BLC
  • With deep learning algorithm, it supports people counting
  • face detec tion, perimeter protection, ANPR
  • Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; BNC
  • supports max. 256 G SD card
  • 24V AC/PoE/12V DC power support
  • IP67, IK10 protection grade

Functions

Face Detection

Dahua Face Detection technology can detect the face in the image. With deep learning algorithm, the technology supports detecting, tracking, capturing and selecting the best face image, and then outputs face snapshot.

People Counting

With deep learning algorithm, Dahua People Counting technology can track and process moving human body targets to realize the accurate statistics of enter No., leave No., and In Area No. Working with management platform, it outputs reports to meet your requirements.

Video Metadata

With deep learning algorithm, Dahua Video Metadata technology can detect, track, capture vehicle, non-motor vehicle and people, and select the best images, and extract attributes.

Smart H.265+ & Smart H.264+

With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

ePoE

Dahua ePoE technology provides a new way to accomplish long distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost.

Perimeter Protection

With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.

Cyber Security

Dahua network camera is equipped with a series of key security technologies, such as security authentication and authorization, access control, trusted protection, encrypted transmission, and encrypted storage, which improve its security defense and data protection, and prevent malicious programs from invading the device.

ANPR

With high-performance GPU chip, deep learning algorithm, and lots of sample training learning, Dahua ANPR technology can automatically collect and recognize the vehicle information, including license plate, logo, vehicle type, and vehicle color.

Case Studies
IPCHDBW7842HPZ - Quick Guide
Brochures
IPCHDBW7842HPZ - Brochure
Datasheets
Dahua IP 8MP 2.7-12mm IR40m ePoE 12/24V IK10 WizMind Dome - Datasheet
Product Manuals
Dahua IP 8MP 2.7-12mm IR40m ePoE 12/24V IK10 WizMind Dome - Product Manual

Brand: Dahua | Code: IPCHDBW7842HPZ
APN: 6923172540782 | Supplier Code: 1.0.01.04.30170-0015

Brand: Dahua | Code: IPCHDBW7842HPZ
APN: 6923172540782 | Supplier Code: 1.0.01.04.30170-0015

At a glance

  • 8MP, 1/1.8" CMOS image sensor
  • Wide dynamic, day/night, 3D NR, AWB, HLC, BLC
  • With deep learning algorithm, it supports people counting
  • face detec tion, perimeter protection, ANPR
  • Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; BNC
  • supports max. 256 G SD card
  • 24V AC/PoE/12V DC power support
  • IP67, IK10 protection grade
