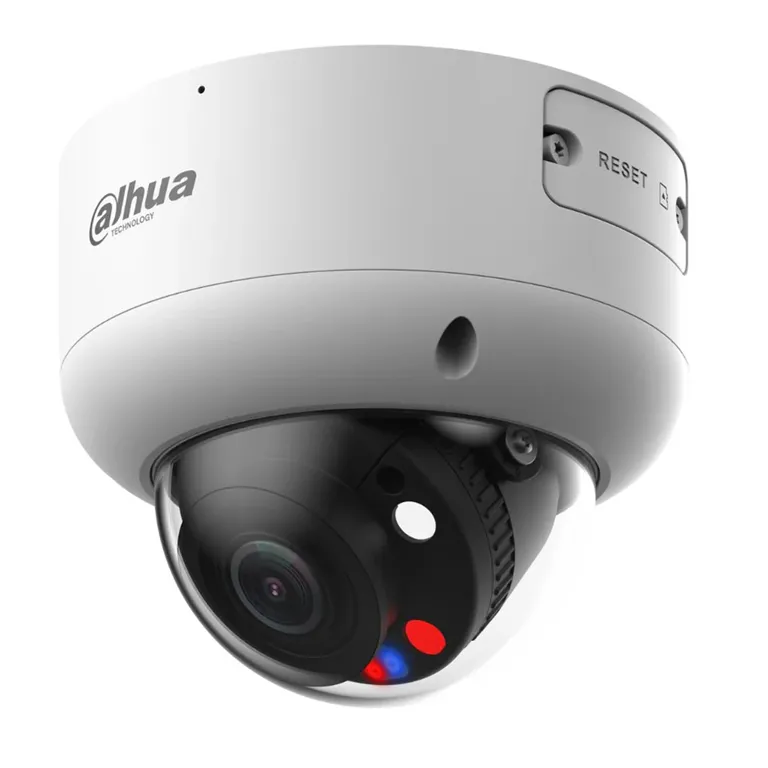

Dahua IP 8MP Vandal Dome 2.7-13.5mm TIOC IR V4 Acupick
- 8-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.·Outputs max. 8 MP (3840 × 2160 )@25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.·Built-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 m.
- ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.·Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)·Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.
- 12 VDC/PoE power supply.·IP67 and IK10 protection.·Sound and light alarm (red and blue lights).
- SMD 4.0.·Supports AI SSA and one-tap arming and disarming.
- SMD area can be set in warm light areas that support triggering alarms
| Case Studies | |
|---|---|
| IPCHDBW3849ZAPV2 - Quick Guide | Datasheets |
| Dahua IP 8MP Vandal Dome 2.7-13.5mm TIOC IR V4 Acupick - Datasheet | Installation Guides |
| Dahua IP 8MP Vandal Dome 2.7-13.5mm TIOC IR V4 Acupick - Installation Guide |
Brand: Dahua |
Code: IPCHDBW3849ZAPV2
APN: 6923172504142 |
Supplier Code: 1.0.01.04.42341
Supplier Description: DH-IPC-HDBW3849R1-ZAS-PV-ANZS2
Brand: Dahua |
Code: IPCHDBW3849ZAPV2
APN: 6923172504142 |
Supplier Code: 1.0.01.04.42341
Supplier Description: DH-IPC-HDBW3849R1-ZAS-PV-ANZS2
At a glance
- 8-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.·Outputs max. 8 MP (3840 × 2160 )@25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.·Built-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 m.
- ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.·Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)·Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.
- 12 VDC/PoE power supply.·IP67 and IK10 protection.·Sound and light alarm (red and blue lights).
- SMD 4.0.·Supports AI SSA and one-tap arming and disarming.
- SMD area can be set in warm light areas that support triggering alarms
