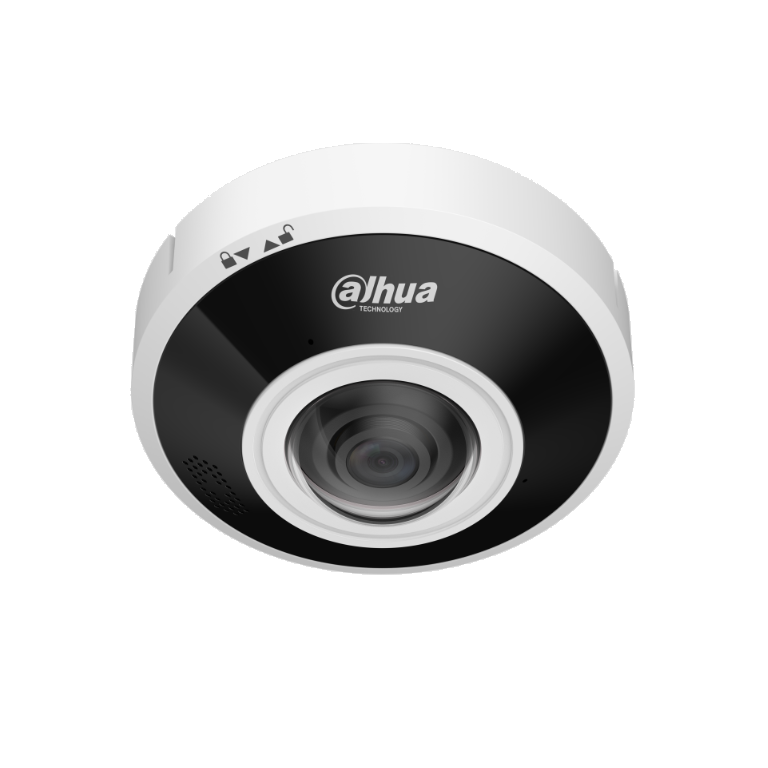

Dahua IP 6MP 1.68mm Panoramic Fisheye Camera New
- 6-MP 1/2.5" CMOS image sensor, low luminance, and high definition image.
- Outputs max. 6 MP (2560 × 2560)@25/30 fps.
- 360° fisheye monitoring covers all the corners without any blind zone.
- Supports fisheye front-dewarp and back-dewarp.
- Supports split screen for 2 and 4 windows.
- Built-in IR LED, and the max. illumination distance is 15 m.
- ROI, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
- WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- With deep learning algorithm, it supports: Perimeter Protection, People Counting, Heat map.
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1TB Micro SD card;
- Built-in speaker and dual Mic. Supports two-way talk.
- 12 VDC/ PoE(802.3af) power supply.
- IP67 and IK10 protection.
| Case Studies | |
|---|---|
| IPCEBW5641AS - Quick Guide | Datasheets |
| Dahua IP 6MP 1.68mm Panoramic Fisheye Camera New - Datasheet | Installation Guides |
| Dahua IP 6MP 1.68mm Panoramic Fisheye Camera New - Installation Guide |
Related Categories
Dome Cameras
Brand: Dahua |
Code: IPCEBW5641AS
APN: 6939554929922 |
Supplier Code: 1.0.01.04.43583
Brand: Dahua |
Code: IPCEBW5641AS
APN: 6939554929922 |
Supplier Code: 1.0.01.04.43583
At a glance
- 6-MP 1/2.5" CMOS image sensor, low luminance, and high definition image.
- Outputs max. 6 MP (2560 × 2560)@25/30 fps.
- 360° fisheye monitoring covers all the corners without any blind zone.
- Supports fisheye front-dewarp and back-dewarp.
- Supports split screen for 2 and 4 windows.
- Built-in IR LED, and the max. illumination distance is 15 m.
- ROI, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
- WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- With deep learning algorithm, it supports: Perimeter Protection, People Counting, Heat map.
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1TB Micro SD card;
- Built-in speaker and dual Mic. Supports two-way talk.
- 12 VDC/ PoE(802.3af) power supply.
- IP67 and IK10 protection.
