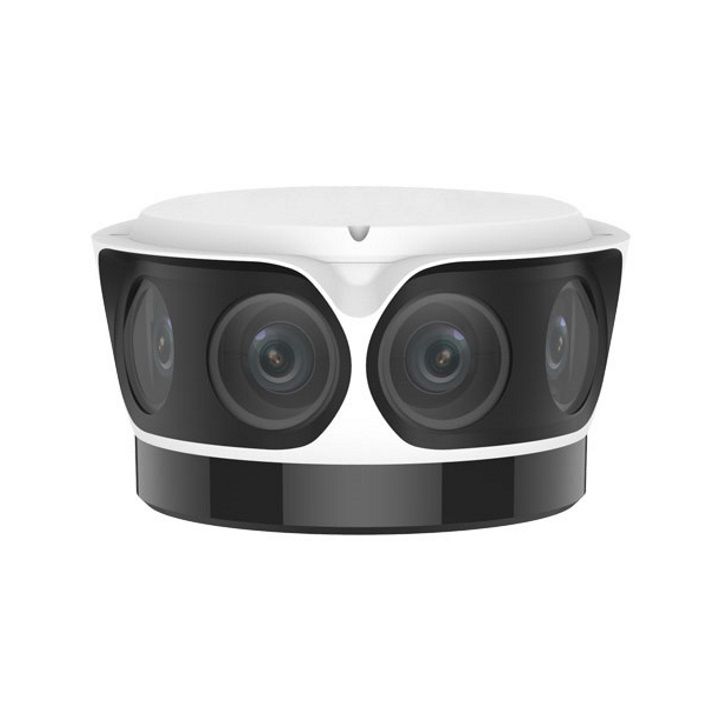

UNV 8MP Multi Sensor OMNIVIEW Camera (without Bracket) AC24V DC24V
- 1/1.8" progressive scan CMOS
- Up to 4096×1800 resolution,30fps
- 180°Horizontal viewing angle
- 4×4.2mm lens
- Smart IR, up to 50m IR distance
- 120dB True WDR
Optics
- Fifth-generation infrared technology, up to 50m (164ft) IR distance
- Starlight illumination
- IR anti-reflection window to increase the infrared transmittance
- Smart IR
- 2D/3D DNR (Digital Noise Reduction)
- 120dB true WDR
- Support a horizontal viewing angle of 180°
Compression
- Ultra H.265,H.265, H.264, MJPEG
- Triple streams
- Customized OSD
- 4096×1800@30fps supported
Network
- ONVIF Conformance
Structure
- Intelligent temperature control technology
- Wide temperature range: -40°C to 70°C (-40°F to 158°F)
- Wide voltage range of ±25%
- More effective heat dissipation system
- IP67
Case Studies | |
---|---|
IPC8542ER5-DUG - Quick Guide | Datasheets |
UNV 8MP Multi Sensor OMNIVIEW Camera (without Bracket) AC24V DC24V - Datasheet | Product Manuals |
UNV 8MP Multi Sensor OMNIVIEW Camera (without Bracket) AC24V DC24V - Product Manual |
Brand: Uniview |
Code: IPC8542ER5-DUG
APN: 0235X188 |
Supplier Code: IPC8542ER5-DUG
Brand: Uniview |
Code: IPC8542ER5-DUG
APN: 0235X188 |
Supplier Code: IPC8542ER5-DUG
At a glance
- 1/1.8" progressive scan CMOS
- Up to 4096×1800 resolution,30fps
- 180°Horizontal viewing angle
- 4×4.2mm lens
- Smart IR, up to 50m IR distance
- 120dB True WDR
