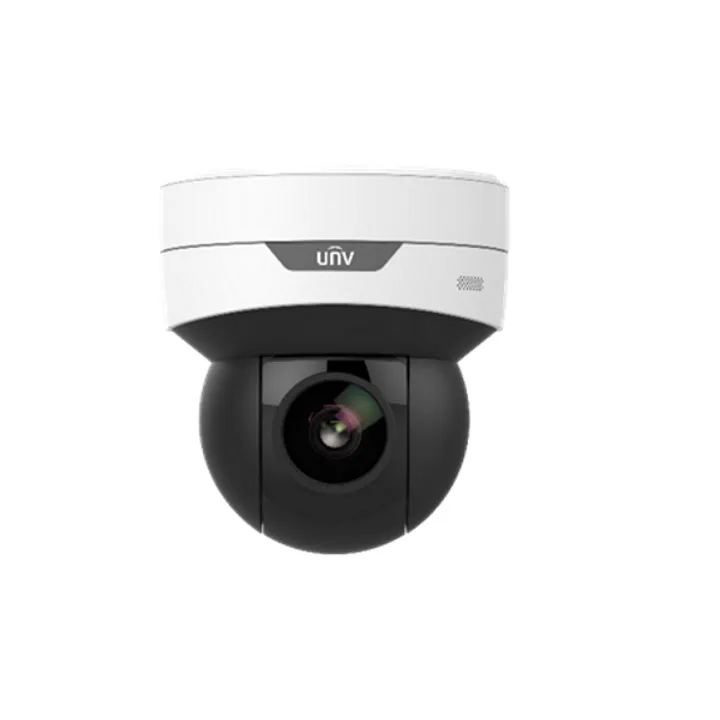

UNV 5MP 5x Zoom Starlight PoE Indoor Mini PTZ Camera Wi-Fi

PRODUCT ENQUIRY

5MP MiniPTZ
Starlight Illumination (Min. Illumination 0.005 Lux)
120dB TrueWDR
Up to 30m SmartIR

Brand: Uniview Code: IPC6415SR-X5UPW
APN: 9319499094294 | Supplier Code: IPC6415SR-X5UPW
Supplier Description: Mini PTZ Indoor5MP 5x S.L.PoE

Recommended Accessories

Optics

Starlight illumination
Day/night functionality
Smart IR , up to 30 m (98 ft) IR distance
Up to 120 dB Optical WDR(Wide Dynamic Range)
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
2D/3D DNR (Digital Noise Reduction)

Compression

Ultra 265,H.265, H.264, MJPEG
Built-in microphone & speaker
Triple streams
ROI (Region of Interest)

Network

ONVIF Conformance

Structure

Support PoE power supply
Built-in PoE splitter that outputs DC 12
Wide temperature range: -10°C to 50°C (14°F to 122°F)
Wide voltage range of ±25%

Camera
Sensor	1/2.8" progressive scan, 5.0 megapixel, CMOS
Lens	2.7~13.5mm，AF automatic focusing and motorized zoom lens\
DORI Distance	Lens: 2.7mm Detect(m): 40.5 Observe(m): 16.2 Recognize(m): 8.1 Identify(m): 4.1 Lens: 13.5mm Detect(m): 202.5 Observe(m): 81.0 Recognize(m): 40.5 Identify(m): 20.3
Angle of View (H)	105.3°~ 25.4°
Angle of View (V)	69.5° ~18.4°
Angle of View (O)	136.9°~30.0°
Adjustment angle	Pan: 0°~350° Tilt: 0°~90° Rotate: 0°~350°
Shutter	Auto/Manual, shutter time: 1 s ~ 1/100000 s
Minimum Illumination	Colour: 0.005 lux (F1.2,AGC ON) 0 lux with IR
Iris	F1.2
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>55 dB
IR Range	UP to 30m (98ft)
Defog	Digital Defog
WDR	120dB
Video
Video Compression	Ultra 265,H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Frame Rate	Main Stream:5M (2592*1944):Max. 30 fps; Sub Stream: 1080P (1920×1080):Max. 30 fps; Third Stream: D1 (720×576): Max. 30 fps
HLC	Supported
BLC	Supported
EIS	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
Smart
Behavior Detection	Intrusion, cross line, motion detection, Auto tracking
Intrusion	Enter and loiter in a pre-defined virtual region
Cross line	Cross a pre-defined virtual line
Motion detection	Moving within a pre-defined virtual region
Auto tracking	Tracking the specified target
Recognition	Face detection、Audio detection
Intelligent Identification	Defocus, Scene Change, Object Left, Object Moving
Statistical Analysis	People counting
General Function	Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Heat map	Supported
Audio
Audio Compression	G.711
Suppression	Suppression
Sampling Rate	8 KHZ
Storage
Edge Storage	Micro SD, up to 256 GB
Network Storage	ANR
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL
Compatible Integration	ONVIF(Profile S, Profile G), API
Pan & Tilt
Pan Range	350°
Pan Speed	0.1°/s ~ 60°/s Preset speed: 60°/s
Tilt Range	0° ~ 90° (auto reverse)
Tilt Speed	0.1° ~ 50°/s Preset speed: 50°/s
Number of Presets	256
Patrol	Preset patrol, route patrol, recorded patrol
Home Position	Supported
Interface
Alarm I/O	1/1
Serial Port	1 RS485
Network	1 RJ45 10M/100M Base-TX Ethernet
Built-in Mic	Supported
Built-in Speaker	Supported
WIFI	Supported
General
Power	DC 12V±25%, PoE (IEEE802.3 af) Power consumption: Max 12W
Dimensions (Ø x H)	Φ129mm×143mm(Φ5.07” x5.63”)
Weight	3kg(6.6lb)
Working Environment	–10°C ~ +50°C (14°F ~ 122°F), Humidity:10%~90% RH(non-condensing)
Reset Button	Supported

DATASHEETS
	UNV 5MP 5x Zoom Starlight PoE Indoor Mini PTZ Camera Wi-Fi - Datasheet

To estimate the freight on this item simply enter the destination postcode and the desired quantity and click the "estimate" button.

OVERVIEW

Optics

Starlight illumination
Day/night functionality
Smart IR , up to 30 m (98 ft) IR distance
Up to 120 dB Optical WDR(Wide Dynamic Range)
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
2D/3D DNR (Digital Noise Reduction)

Compression

Ultra 265,H.265, H.264, MJPEG
Built-in microphone & speaker
Triple streams
ROI (Region of Interest)

Network

ONVIF Conformance

Structure

Support PoE power supply
Built-in PoE splitter that outputs DC 12
Wide temperature range: -10°C to 50°C (14°F to 122°F)
Wide voltage range of ±25%

FEATURES

SPECIFICATIONS

Camera
Sensor	1/2.8" progressive scan, 5.0 megapixel, CMOS
Lens	2.7~13.5mm，AF automatic focusing and motorized zoom lens\
DORI Distance	Lens: 2.7mm Detect(m): 40.5 Observe(m): 16.2 Recognize(m): 8.1 Identify(m): 4.1 Lens: 13.5mm Detect(m): 202.5 Observe(m): 81.0 Recognize(m): 40.5 Identify(m): 20.3
Angle of View (H)	105.3°~ 25.4°
Angle of View (V)	69.5° ~18.4°
Angle of View (O)	136.9°~30.0°
Adjustment angle	Pan: 0°~350° Tilt: 0°~90° Rotate: 0°~350°
Shutter	Auto/Manual, shutter time: 1 s ~ 1/100000 s
Minimum Illumination	Colour: 0.005 lux (F1.2,AGC ON) 0 lux with IR
Iris	F1.2
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>55 dB
IR Range	UP to 30m (98ft)
Defog	Digital Defog
WDR	120dB
Video
Video Compression	Ultra 265,H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Frame Rate	Main Stream:5M (2592*1944):Max. 30 fps; Sub Stream: 1080P (1920×1080):Max. 30 fps; Third Stream: D1 (720×576): Max. 30 fps
HLC	Supported
BLC	Supported
EIS	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
Smart
Behavior Detection	Intrusion, cross line, motion detection, Auto tracking
Intrusion	Enter and loiter in a pre-defined virtual region
Cross line	Cross a pre-defined virtual line
Motion detection	Moving within a pre-defined virtual region
Auto tracking	Tracking the specified target
Recognition	Face detection、Audio detection
Intelligent Identification	Defocus, Scene Change, Object Left, Object Moving
Statistical Analysis	People counting
General Function	Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Heat map	Supported
Audio
Audio Compression	G.711
Suppression	Suppression
Sampling Rate	8 KHZ
Storage
Edge Storage	Micro SD, up to 256 GB
Network Storage	ANR
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL
Compatible Integration	ONVIF(Profile S, Profile G), API
Pan & Tilt
Pan Range	350°
Pan Speed	0.1°/s ~ 60°/s Preset speed: 60°/s
Tilt Range	0° ~ 90° (auto reverse)
Tilt Speed	0.1° ~ 50°/s Preset speed: 50°/s
Number of Presets	256
Patrol	Preset patrol, route patrol, recorded patrol
Home Position	Supported
Interface
Alarm I/O	1/1
Serial Port	1 RS485
Network	1 RJ45 10M/100M Base-TX Ethernet
Built-in Mic	Supported
Built-in Speaker	Supported
WIFI	Supported
General
Power	DC 12V±25%, PoE (IEEE802.3 af) Power consumption: Max 12W
Dimensions (Ø x H)	Φ129mm×143mm(Φ5.07” x5.63”)
Weight	3kg(6.6lb)
Working Environment	–10°C ~ +50°C (14°F ~ 122°F), Humidity:10%~90% RH(non-condensing)
Reset Button	Supported

DOWNLOADS

DATASHEETS
	UNV 5MP 5x Zoom Starlight PoE Indoor Mini PTZ Camera Wi-Fi - Datasheet
