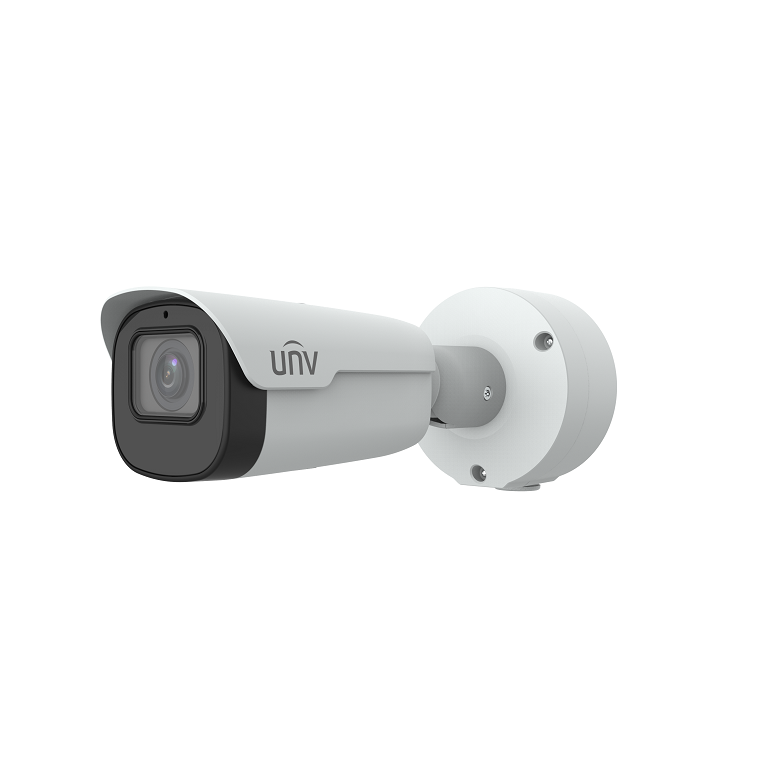

UNV 8MP Bullet 4x Zoom 80M IR IP67 BNC Heater Mic LightHunter

UNV 8MP Bullet 4x Zoom 80M IR IP67 BNC Heater Mic LightHunter

  PRODUCT ENQUIRY
  • High quality image with 8MP,1/1.8’’ CMOS sensor
  • 3840*2160@30fps in the main stream
  • Ultra 265, H.265, H.264, MJPEG
  • LightHunter technology ensures ultra-high image quality in low illumination environment
  • Up to 120 dB Optical WDR (Wide Dynamic Range)
  • Built-in heater, support normal start-up at low temperature
  • DC12V or PoE (IEEE 802.3af) power supply
  • Wide voltage range of ±25% in DC
  • Audio 1 in and 1 out, Alarm 2 in and 1 out

Brand: Uniview Code: IPC2A28SE-ADZKI0
APN: 0235C5KH   |    Supplier Code: 0235C5KH
Supplier Description: IPC2A28SE-ADZK-I0
  •  High quality image with 8MP,1/1.8’’ CMOS sensor
  •  3840*2160@30fps in the main stream
  •  Ultra 265, H.265, H.264, MJPEG
  •  LightHunter technology ensures ultra-high image quality in low illumination environment
  • Up to 120 dB Optical WDR (Wide Dynamic Range)
  •  Built-in heater, support normal start-up at low temperature
  •  DC12V or PoE (IEEE 802.3af) power supply
  •  Wide voltage range of ±25% in DC
  •  Audio 1 in and 1 out, Alarm 2 in and 1 out
  IPC2A28SE-ADZK-I0
Camera
Sensor 1/1.8", 8.0 megapixel, progressive scan, CMOS
Min. Illumination Colour:0.001 lux (F1.2, AGC ON)
0 lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
WDR 120dB
S/N >56dB
Lens
Lens type 2.8~12mm@F1.2, AF automatic focusing and motorized zoom lens
Iris Fixed
Angle of View (H) 48.0°~101.1°
Angle of View (V) 23.9°~57.2°
Angle of View (O) 4.12°~74.38°
DORI
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 98.6(323.3ft) 39.4(129.3ft) 19.7(64.7ft) 9.9(32.3ft)
12 241.0(790.6ft) 96.4(316.2ft) 48.2(158.1ft) 24.1(79.1ft)
Illuminator
IR Range Up to 80m (262 ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
Frame Rate Main Stream: 8MP (3840*2160), Max 30fps in Frame Rate Priority mode; Max 20fps in Smart Priority mode;
Sub Stream: 1080P (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
ROI Up to 8 areas
Video stream Triple streams
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas per scene
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Flip Vertical/Flip Horizontal/180°
HLC Support
BLC Support
Defog Digital Defog
Events
Basic Detection Motion detection, Audio detection, Tampering alarm;
General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way Audio Support
Suppression Support
Sampling Rate 8KHz
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR,NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host Up to 32 users. 2 user levels: administrator and common user
Security Password protection, strong password, HTTPS encryption, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client EZStation
EZLive
Ezview
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Interface
Audio I/O 1/1
Alarm I/O 2/1
Serial Port N/A
Built-in Mic Support
Built-in Speaker N/A
Built-in Heater Support
Video output 1 BNC
Network 1 * RJ45 10M/100M Base-TX Ethernet
Certification
EMC FCC CFR 47 Part 15
EN 55032:2015
EN 55024:2010
EN 61000-3-2:2014
EN 61000-3-3-2013
Safety IEC 62368-1
EN 62368-1
UL 60950-1
Environment CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
Protection Ingression protection: IP67 (IEC 60529-2013)
Vandal resistant: IK10 (IEC 62262:2002)
General
Power DC12V(±25%), PoE(IEEE 802.3af)
Power consumption: Max 12W
Dimensions (Ø x H) Ø 130×322mm (Ø 5.1’’ x 12.7’’)
Weight 1.5Kg(3.31lb)
Working Environment -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Surge protection 6KV
Vandal Resistant IK10
Ingress Protection IP67
Reset button Support
DATASHEETS
UNV 8MP Bullet 4x Zoom 80M IR IP67 BNC Heater Mic LightHunter - Datasheet
PRODUCT MANUALS
UNV 8MP Bullet 4x Zoom 80M IR IP67 BNC Heater Mic LightHunter - Product Manual
This product has yet to be reviewed

To be the first to review this product simply fill out the form to the left and let us know how you feel about this product!


To estimate the freight on this item simply enter the destination postcode and the desired quantity and click the "estimate" button.

OVERVIEW

  •  High quality image with 8MP,1/1.8’’ CMOS sensor
  •  3840*2160@30fps in the main stream
  •  Ultra 265, H.265, H.264, MJPEG
  •  LightHunter technology ensures ultra-high image quality in low illumination environment
  • Up to 120 dB Optical WDR (Wide Dynamic Range)
  •  Built-in heater, support normal start-up at low temperature
  •  DC12V or PoE (IEEE 802.3af) power supply
  •  Wide voltage range of ±25% in DC
  •  Audio 1 in and 1 out, Alarm 2 in and 1 out

SPECIFICATIONS

  IPC2A28SE-ADZK-I0
Camera
Sensor 1/1.8", 8.0 megapixel, progressive scan, CMOS
Min. Illumination Colour:0.001 lux (F1.2, AGC ON)
0 lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
WDR 120dB
S/N >56dB
Lens
Lens type 2.8~12mm@F1.2, AF automatic focusing and motorized zoom lens
Iris Fixed
Angle of View (H) 48.0°~101.1°
Angle of View (V) 23.9°~57.2°
Angle of View (O) 4.12°~74.38°
DORI
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 98.6(323.3ft) 39.4(129.3ft) 19.7(64.7ft) 9.9(32.3ft)
12 241.0(790.6ft) 96.4(316.2ft) 48.2(158.1ft) 24.1(79.1ft)
Illuminator
IR Range Up to 80m (262 ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
Frame Rate Main Stream: 8MP (3840*2160), Max 30fps in Frame Rate Priority mode; Max 20fps in Smart Priority mode;
Sub Stream: 1080P (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
ROI Up to 8 areas
Video stream Triple streams
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas per scene
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Flip Vertical/Flip Horizontal/180°
HLC Support
BLC Support
Defog Digital Defog
Events
Basic Detection Motion detection, Audio detection, Tampering alarm;
General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way Audio Support
Suppression Support
Sampling Rate 8KHz
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR,NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host Up to 32 users. 2 user levels: administrator and common user
Security Password protection, strong password, HTTPS encryption, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client EZStation
EZLive
Ezview
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Interface
Audio I/O 1/1
Alarm I/O 2/1
Serial Port N/A
Built-in Mic Support
Built-in Speaker N/A
Built-in Heater Support
Video output 1 BNC
Network 1 * RJ45 10M/100M Base-TX Ethernet
Certification
EMC FCC CFR 47 Part 15
EN 55032:2015
EN 55024:2010
EN 61000-3-2:2014
EN 61000-3-3-2013
Safety IEC 62368-1
EN 62368-1
UL 60950-1
Environment CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
Protection Ingression protection: IP67 (IEC 60529-2013)
Vandal resistant: IK10 (IEC 62262:2002)
General
Power DC12V(±25%), PoE(IEEE 802.3af)
Power consumption: Max 12W
Dimensions (Ø x H) Ø 130×322mm (Ø 5.1’’ x 12.7’’)
Weight 1.5Kg(3.31lb)
Working Environment -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Surge protection 6KV
Vandal Resistant IK10
Ingress Protection IP67
Reset button Support
