Dahua Solar kit 100 Watt & Battery & 4G Bullet Camera

Dahua Solar kit 100 Watt & Battery & 4G Bullet Camera

  PRODUCT ENQUIRY

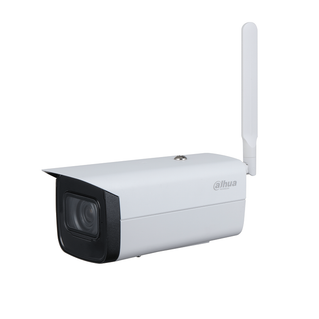

  • Kit include PFM378-B100-WB , Lithium Battery and 4G Camera
  • Integrated design, easy to install
  • Supports wall mount and pole mount
  • 100W Monocrystalline solar panel.
  • Built sturdy to resist storms with sustained winds up to 117 km/h
  • Remote monitoring available through the mobile app.
  • Maximum Power Point Tracking (MPPT) charging controller.
  • RS-485 communication function.
  • Electric protection.
Brand: Dahua Code: DH SOLAR KIT100W
Supplier Code:
Supplier Description:

This is a Kit item made up of the following products:

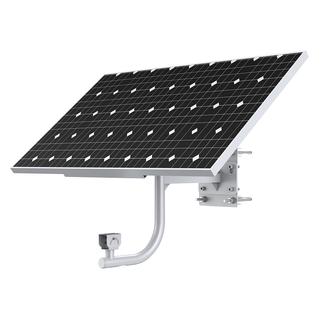

Solar Panel

Type

Monocrystalline silicon

Max. Power

100 W

Output Voltage

18.8 VDC

Solar Cell Efficiency

21%

Max. Mechanical Load

5400 Pa

Controller

Type

MPPT

Operating Voltage

12 VDC

Rated Charging Current

10 A

Rated discharge current

10 A

MPPT Tracking Efficiency

≥ 99%

Communication Mode

RS485

Operating Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Rated Charging Power

130 W

Over-discharge Protection Voltage

11.1 VDC

Others

Over-temperature ,over-discharge,overa-voltage and low-temperature protection of battery; overload and short circuit protection of load.

Port

Power Output

Φ5.5 mm × Φ2.1 mm × 12 mm

(Φ0.22" × Φ0.08" × 0.47")

RS–485

Red: RS485-A
Black: RS485-B

Output Port

CSA authorized M15 2-core waterproof connector (connected to lithium battery)

General

Main Body Material

Q235

IP Rating

IP65

Installation

Pole mount, Φ80mm~Φ150mm

Adjustable Angle

Solar panel: H: 360°, V: 20°/40°/60°

Camera: H: 360°, V: 0°–75°

Product Dimensions

815mm x 846.8mm x 893.3mm

(32.1” x 33.3” x 35.2”)

Packaging Dimensions

880 mm × 765 mm × 275 mm (34.65" × 30.12" × 10.83")

Packaging Method

1 pc in each carton

Net Weight

20.1 kg (44.31 lb)

Gross Weight

23.8 kg (52.47 lb)

Environment

Operating Altitude

< 3000 m (9842.5 ft)

Applicable Area

Areas with daily exposure to solar radiation for more than 3.5 hours

Operating Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

< 95% (RH)

Storage Temperature

0 °C to 40 °C (32 °F to 104 °F)

Storage Humidity

< 95% (RH)

Certifications

Certifications

CE: EN 55032:2015+A11:2020,EN 55035:2017+A11:2020,EN 55024:2010+A1:2015,EN 50130-4:2011+A1:2014

UKCA: EN 55032:2015+A11:2020,EN 55035:2017+A11:2020,EN 55024:2010+A1:2015,EN 50130-4:2011+A1:2014

Protection

Grade

IP66

Connection

Connection

M15 female connector

Application

Applicable Device

DH-PFM364L-D1, DH-PFM363L-D1, and DH-PFM363LSD1

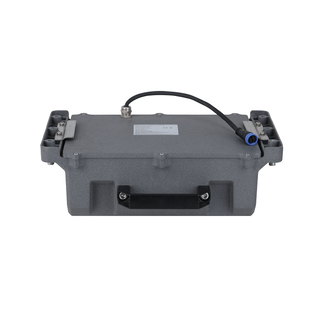

General

Product Dimensions

Outer: 359.8 mm × 268.7mm × 116.0 mm(14.17" × 10.58" × 4.57") Inner: 282.0 mm × 209.0 mm × 98.5 mm (11.10" × 8.23" × 3.88")

Material

Die casting aluminum

Color

Grey

Net Weight

8.5 kg (18.74 lb)

Gross Weight

9.8 kg (21.61 lb)

Packaging Dimensions

459 mm × 349 mm × 209 mm
(18.07" × 13.74" × 8.23")

Packaging Method

1 pc in each carton

Environment

Operating Temperature

–20°C to 60°C (–4°F to 140°F)

Operating Humidity

<95% (RH)

Storage Temperature

0°C to 40°C (32°F to 104°F)

Storage Humidity

<95% (RH)

Function

Charging Current

9A

Discharge Current

9A

Rated Voltage

DC12.8V

Internal Resistance

≤80mΩ

Nominal Capacity

45Ah

Charging Voltage

Max.DC14.6V

Max.Current

Charging: 10A, Discharging: 10A

Certification

Certification

CE: EN 61000-6-3, EN IEC 61000-6-1

FCC: FCC Part 15, Subpart B
